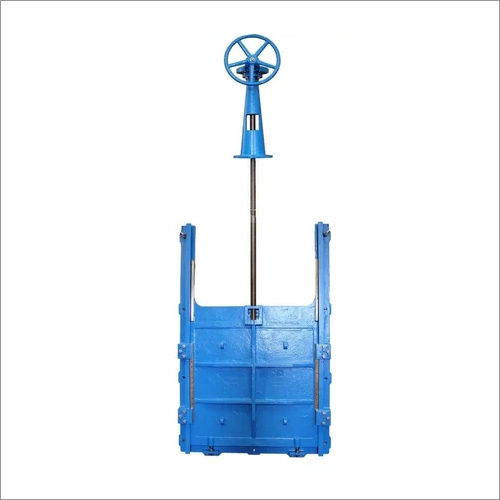

Open Channel Sluice Gate

Open Channel Sluice Gate Specification

Material
Stainless Steel

Media
Water

Type
Hydraulic

Pressure
Low/Medium

Structure
Single Leaf with Channel Mounting

Size
Custom/As Required

Standard
First Class

Application
Waterways, Canals, Sewage Treatment, Flood Control

Leakage Rate
Minimal, meets industry standards

Mounting
Wall Mounted/Channel Mounted

Seal Material
EPDM/Nitrile Rubber

Frame Type
Channel Frame

Corrosion Resistance
High, Suitable for Wastewater Applications

Operation
Manual or Electric Actuator Available

Open Channel Sluice Gate Trade Information

Minimum Order Quantity
10 Units

Supply Ability
4000 Units Per Month

Delivery Time
10 Days

Main Domestic Market
All India

About Open Channel Sluice Gate

Specification

Material	Cast Iron
Usage/Application	Industrial
Color	Blue
Brand	Halcyon
Control Panel	On request
Nominal Pressure	Open Atmosphere
Operation Mode	Manual
Size/Dimension	1800 X 2000 mm

Cast Iron Open Channel Sluice Gate Open Channel

Body/Frame - Cast Iron
Seat - Nitrile Rubber to SS 304
Operation - Gear by hand wheel
Head Stock - Yes
Spindle - AISI 410
Slush Bottom Seal - Nitrile Rubber

Reliable Flow Control Solutions

Designed to address rigorous demands in wastewater management and flood control, this sluice gate ensures dependable performance with minimal leakage, thanks to its premium seal materials and robust structure. Stainless steel construction and customizable sizing offer adaptability and long service life, making it suitable for diverse water management applications.

Advanced Design for Corrosive Environments

With frame and leaf components built from corrosion-resistant stainless steel, the gate stands up to harsh conditions commonly found in sewage treatment and canal operations. Channel frame mounting options enhance installation flexibility, while the choice of EPDM or Nitrile rubber seals maintains high sealing efficiency despite continuous exposure to water and chemicals.

Mounting Versatility and Efficient Operation

Installation is straightforward whether you require wall-mounted or channel-mounted configuration. The sluice gates single leaf design and actuator optionsmanual or electricenable operators to customize control methods for specific site requirements, ensuring effective water management with minimal maintenance.

FAQs of Open Channel Sluice Gate:

Q: How does the Open Channel Sluice Gate ensure minimal leakage during operation?

A: The gate utilizes EPDM or Nitrile rubber seals which are engineered to withstand water and chemical exposure, effectively minimizing leakage and supporting reliable sealing in demanding wastewater and canal applications.

Q: What installation options are available for this sluice gate?

A: You can mount the sluice gate either to the wall or within the channel, thanks to its adaptable channel frame design. This allows flexible deployment in various water management settings, such as canals and treatment plants.

Q: When should manual or electric actuators be chosen for operation?

A: Manual actuators are suitable for locations with infrequent gate operations or where electric power is not readily available. Electric actuators are recommended for automated, frequent, or remote control scenarios, enhancing operational efficiency in larger plants or flood control systems.

Q: Where is this sluice gate commonly used?

A: It is broadly utilized in waterways, canals, sewage treatment plants, and flood control infrastructures across India, providing dependable flow control in both municipal and industrial environments.

Q: What benefits does the stainless steel construction provide?

A: Stainless steel delivers high corrosion resistance, ensuring structural integrity and extended service life even in harsh or chemically aggressive environments like sewage and floodwater infrastructures.

Q: How is the leakage rate maintained at a minimal level?

A: Minimal leakage is achieved through precision engineering and the selection of premium seal materials, along with compliance to recognized industry standards that regulate performance for critical water management systems.

Q: Can the size of the sluice gate be customized to specific requirements?

A: Yes, sizes can be tailored to meet project-specific needs, allowing precise integration into existing water management channels or new installations.
